* This model is also available in sealed aluminium or plastic housing.

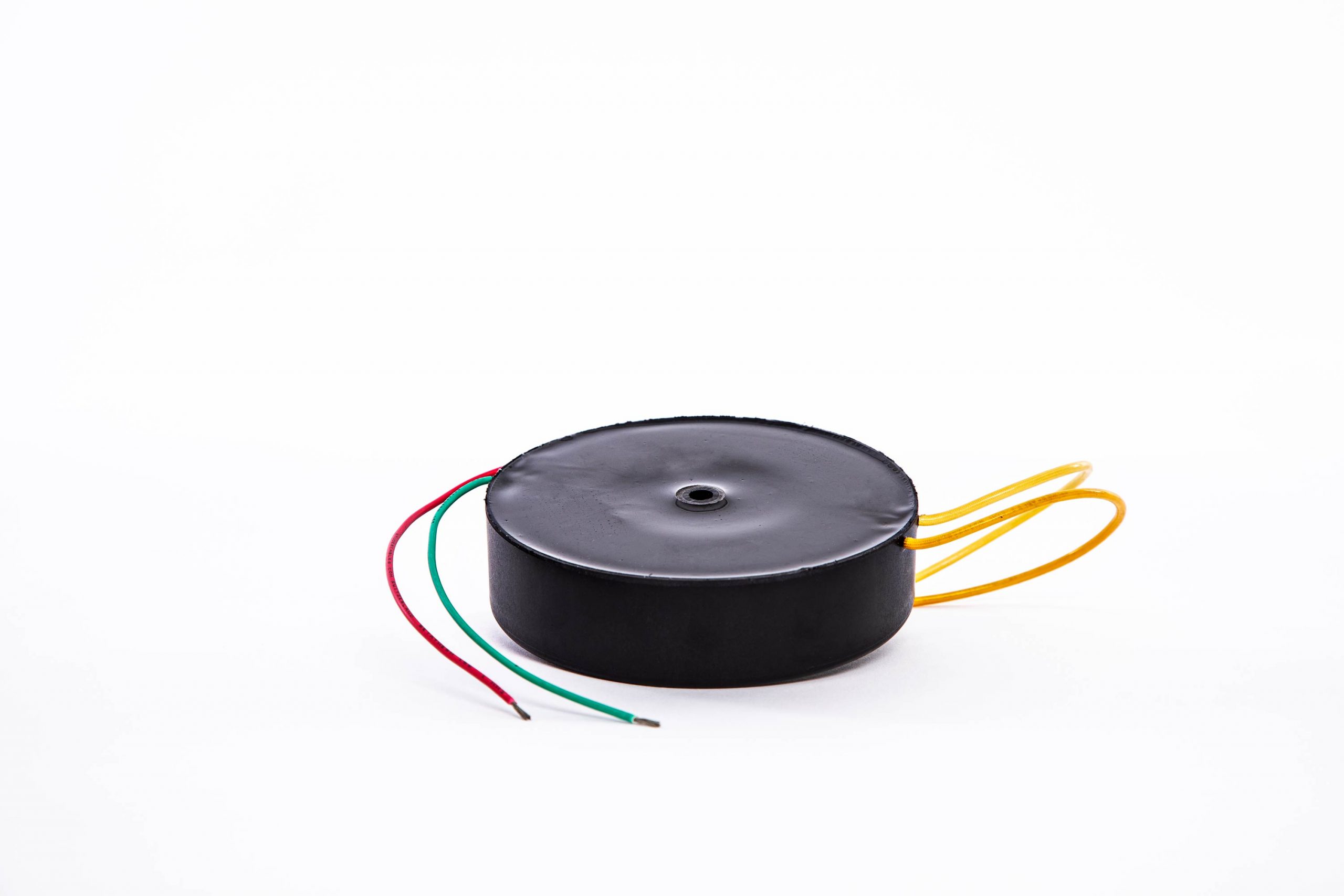

Toroidal transformers
For electrostatic speakers
Type
Input
Output
Dimensions
1:65
4 Ohm max 35V
x65
d=135 h=40
100 V Transformer
Type
Input
Output
Dimensions
AÜ60
100V
2-4-8-16 Ohm
d=80 h=45
AÜ120
100V
4-8-16 Ohm
d=100 h=55
AÜ240
100V
2-4-8 Ohm
=105 h=70
Toroidal output transformers
Type
Input
Output
Dimensions
AÜ40
2,0 kOhm
0-4-8 Ohm
d=90 h=40
AÜ TA200
1,6 kOhm
0-4-8 Ohm
d=115 h=80
Special models: For other performance or dimensions, additional shields, temperature controls, higher insulation class, possible connections and fixings then please fill out our Request Form.
